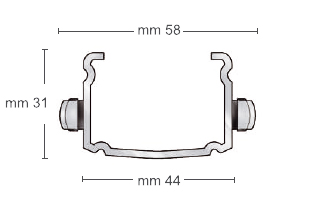

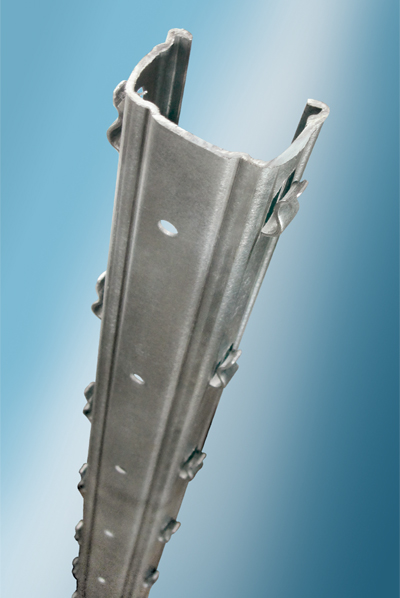

INLINE POLE«U» 44Χ31
The pile has a dimension of 44X36mm, galvanized with a thickness of 1.5mm or 1.25mm.
The profile is constructed in such way, as to eliminate the problem of instability of the pile on the ground by the shocks.
The ribs are made in a way that ensures not only great stability but also great bending strength.

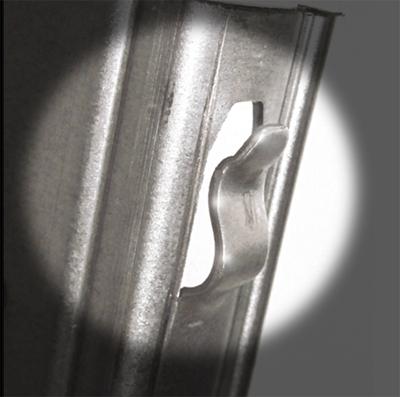

The pile is equipped with a series of external hooks. The hooks are designed to ensure perfect wire application even on uneven or tilting surfaces.
The single hooks allow a convenient and easy placement of the wires as well as their quick replacement.
It is also possible to place more wires at different heights without additional costs for accessories and jabs.
Our piles are ideal, studied and tested for viticulture, agricultural applications in crops that require linear support and mechanical cultivation, such as fruit trees etc. They are also ideal for supporting lines in ornamental plant nurseries and for fencing.
They provide reliable and definitive solutions, making installation and production easy, reducing installation and production costs for professional and amateur producers.
The proposed distance between the piles is about 4-5 meters, and the depth of placement varies between 30-35% of the length of the pile depending on the soil and the crop.
For example, a 2 meter long pile on a moderate ground structure for linear grape cultivation should be placed at 60-70 cm depth.

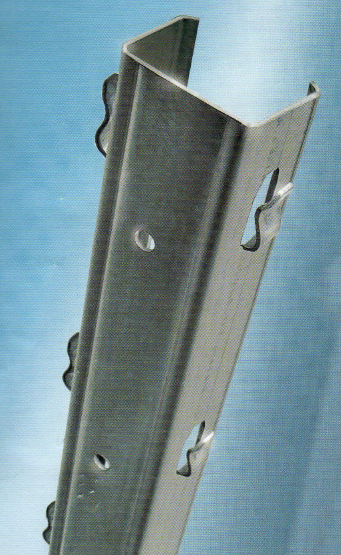

INLINE POLE "MAX TYPE" 55X39 HEAVY DUTY
The "MAX" line pile was designed and built to meet the needs of producers for even stronger and robust piles ideal for last generation crops and complete mechanical cultivation.

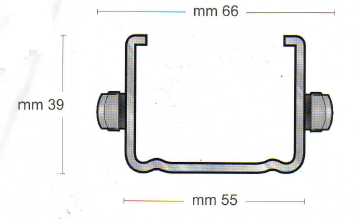

The pile is available in profile 55X39mm and thickness 1.5 and 1.8mm. The hooks are positioned along the pile in pairs per 10 centimeters, giving unlimited possibilities of wiring and peripheral infrastructure such as irrigation, etc. Also before the last pair of ears there is a pair of upside-down ears for positioning wires in the pre- pruning operation.
The piles are made of DX51D / EN10346 steel with Z275gr / sqm high sensimir galvanizing.
