HEAD POLES
The head poles are placed at the edges of the lines and receive larger loads as they tie the line, stretch the wires, and join together to transfer the final high load to the line with the anchors that are placed on the ground.

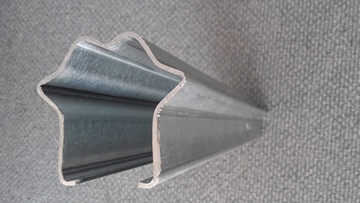

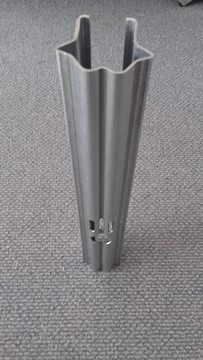

HEAD POLE 55Χ39

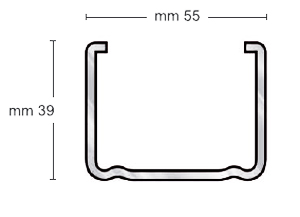

The pole has a dimension of 55X39mm, heavily galvanized. The sectional profile that forms an open "U" with longitudinal ribs, shaped so as to keep the pile over time its features, credibility and robustness. The ribs are made in a way that ensures not only great stability but also great bending strength.


The poles are manufactured with a thickness of 1.5mm 1.8mm and 2mm.

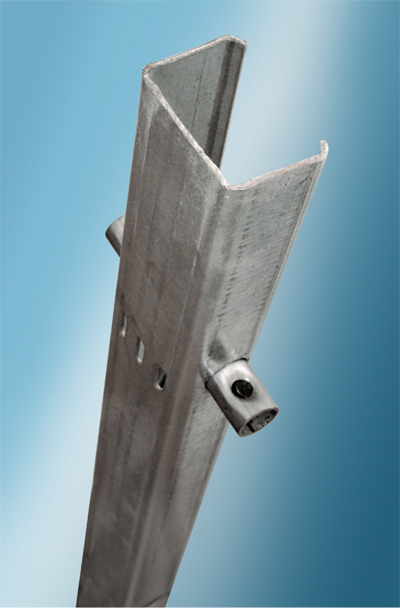

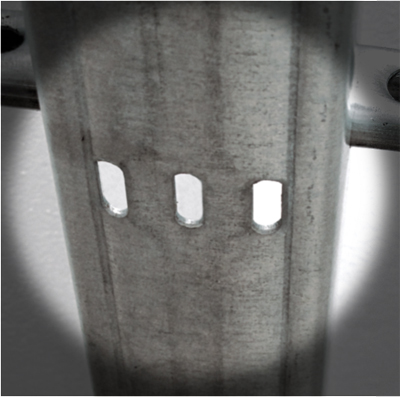

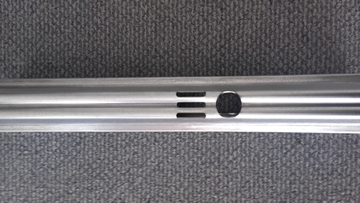

They are manufactured in two versions, with a lateral hole for a cylindrical tensioner (not included) and a single central hole.
In the second version, any type of tensioner can be used, while in the first, the wire secures the pole tensioners.

RELATED MATERIALS

      Viticulture & Horticulture Specialists

NEW HEAVY DUTY 60X55 HEAD POLE

New headpole with dimensions of 60x55mm, heavily galvanized. It is built for even greater strain and support for all new generation of wire management and wiring systems. The cross-sectional profile combining the advantages of the "U" profile that offers greater bending strength of both lateral ribbed "nose tips" for twist resistance and lateral loads. The piles are manufactured with a thickness of 1.5mm 1.8mm and 2mm.
